CLL-系列@单作用螺母锁定液压油缸

CLL-系列@单作用螺母锁定液压油缸单作用，负载回缩螺母锁定使负载更安全烤漆表面提供更强的抗腐蚀能力溢流孔兼有限制行程的功能可互换的硬质沟槽鞍座为标准配置所有型号均包含CR-400快速接头与防尘帽

CLL-系列@单作用螺母锁定液压油缸
单作用，负载回缩
螺母锁定使负载更安全
烤漆表面提供更强的抗腐蚀能力
溢流孔兼有限制行程的功能
可互换的硬质沟槽鞍座为标准配置
所有型号均包含CR-400快速接头与防尘帽

Cylinder Capacity	Stroke	Model Number	Cylinder Effective Area	Oil Capacity	Collapsed Height	Extended Height	Outside Diameter	Weight
ton (max)	(in)	Model Number	(in²)	(in³)	(in)	(in)	(in)	(lbs)
50 (59.1)	1.97	CLL-502	10.99	21.63	6.46	8.43	4.92	35
	3.94	CLL-504	10.99	43.25	8.43	12.36	4.92	46
	5.91	CLL-506	10.99	64.88	10.39	16.30	4.92	57
	7.87	CLL-508	10.99	86.51	12.36	20.24	4.92	68
	9.84	CLL-5010	10.99	108.14	14.33	24.17	4.92	79
	11.81	CLL-5012	10.99	129.76	16.30	28.11	4.92	90

100 (102.9)	1.97	CLL-1002	20.57	40.50	7.36	9.33	6.50	68
	3.94	CLL-1004	20.57	81.00	9.33	13.27	6.50	87
	5.91	CLL-1006	20.57	121.50	11.30	17.20	6.50	106
	7.87	CLL-1008	20.57	162.00	13.27	21.14	6.50	125
	9.84	CLL-10010	20.57	202.50	15.24	25.08	6.50	143
	11.81	CLL-10012	20.57	242.99	17.20	29.02	6.50	162

150 (153.9)	1.97	CLL-1502	30.78	60.58	8.23	10.20	8.07	117
	3.94	CLL-1504	30.78	121.17	10.20	14.13	8.07	146
	5.91	CLL-1506	30.78	181.75	12.17	18.07	8.07	174
	7.87	CLL-1508	30.78	242.33	14.13	22.01	8.07	203
	9.84	CLL-15010	30.78	302.92	16.10	25.94	8.07	231
	11.81	CLL-15012	30.78	363.50	18.07	29.88	8.07	260

200 (206.1)	1.97	CLL-2002	41.17	81.04	9.57	11.54	9.25	183
	5.91	CLL-2006	41.17	243.13	13.50	19.41	9.25	260
	11.81	CLL-20012	41.17	486.27	19.41	31.22	9.25	376

250 (284.0)	1.97	CLL-2502	56.75	111.70	9.80	11.77	10.83	256
	5.91	CLL-2506	56.75	335.11	13.74	19.65	10.83	359
	11.81	CLL-25012	56.75	670.22	19.65	31.46	10.83	515

300 (353.6)	1.97	CLL-3002	70.71	139.19	11.61	13.58	12.20	382
	5.91	CLL-3006	70.71	417.56	15.55	21.46	12.20	514
	11.81	CLL-30012	70.71	835.11	21.46	33.27	12.20	712

400 (433.9)	1.97	CLL-4002	86.79	170.84	13.19	15.16	13.78	553
	5.91	CLL-4006	86.79	512.51	17.13	23.03	13.78	721
	11.81	CLL-40012	86.79	1025.02	23.03	34.84	13.78	972

500 (566.3)	1.97	CLL-5002	113.25	222.99	14.76	16.73	15.75	809
	5.91	CLL-5006	113.25	668.77	18.70	24.61	15.75	1029
	11.81	CLL-50012	113.25	1337.55	24.61	36.42	15.75	1360

600 (662.9)	1.97	CLL-6002	132.57	260.97	15.55	17.52	16.93	985
	5.91	CLL-6006	132.57	782.90	19.49	25.39	16.93	1241
	11.81	CLL-60012	132.57	1565.81	25.39	37.20	16.93	1625

800 (911.6)	1.97	CLL-8002	182.42	359.09	17.91	19.88	19.88	1565
	5.91	CLL-8006	182.42	1077.27	21.85	27.76	19.88	1918
	11.81	CLL-80012	182.42	2154.55	27.76	39.57	19.88	2446

1000 (1136)	1.97	CLL-10002	227.30	447.43	19.49	21.46	22.05	2094
	5.91	CLL-10006	227.30	1342.30	23.43	29.33	22.05	2517
	11.81	CLL-100012	227.30	2684.59	29.33	41.14	22.05	3151

Models above 150 ton are also available with standard stroke lengths of 4, 8 and 10 inches.

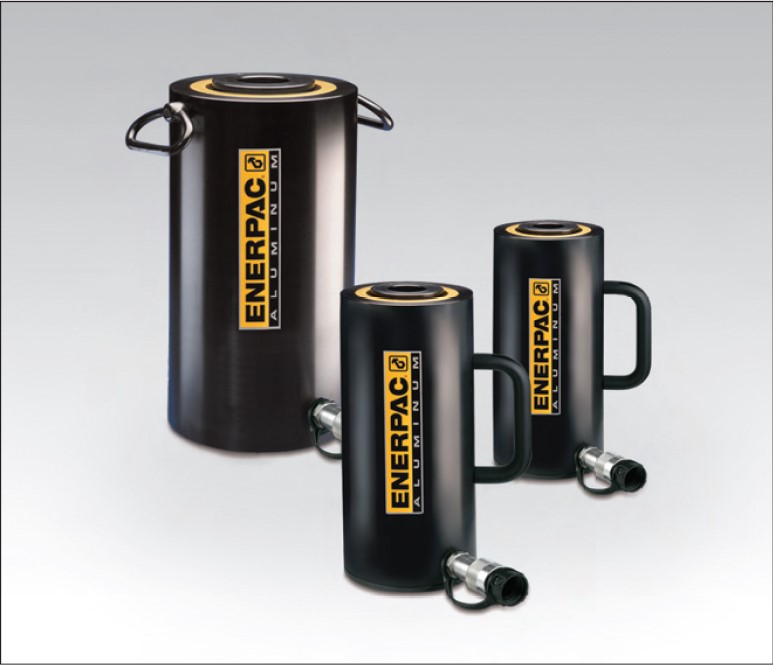

For lightweight aluminium lock nut cylinders see RACL-series cylinders.
